Medieval scratch dials were cut into the stones of churches from Saxon times until around 1600, by which time they had been outcompeted by clocks. In the briefest summary, these scratch (or Mass) dials were primitive ways by which a medieval community, mostly uneducated, could tell or (more accurately) keep the time. All that was needed was a hole, a stick, a nail and some sunshine.
St Andrew . Yetminster . Dorset . Scratch Dial 1
St Andrew . Yetminster . Dorset . Scratch Dial 2
The concept of time as we know it did not exist early medieval times. Days were measured by the passage of the sun. Each community would have had its own daily rhythms. The earliest primitive scratch dials on country churches were the first public indicators of the day’s progress, and (later) the times of Mass. Designs gradually became more ambitious and elaborate. Scientific advances produced more technical and accurate dials, for example by graduating the space between the lines (radials) to allow for the declination of the sun; or bending the gnomon to adjust for latitude. Some later dials include decorative details. There’s a great deal more to be said on the topic, and some of it can be found at a new project called GAUDIUM SUB SOLE
Dials are often eroded, damaged, or both
St Andrew . Leigh . Dorset – Scratch Dial
The central hole for the gnomon (or ‘style’) is frequently filled in
St Peter & St Paul . Bishops Caundle . Dorset
Dials, for obvious reasons, are most usually found on the south side of a church. Favoured locations are the porch, the priest’s door, and a S. or SW. facing buttress. In some cases – especially on buttresses – more than one dial was incised. St Mary Bradford Abbas has an unusual example of large, similar dials overlapping. Repairs, as here, are often unsympathetic.
The second image shows a previously unrecorded dial, inverted, that I noticed high up on a corner tower. Stones with dials were often relocated as churches were reshaped and expanded. There’s a good example at CHARMINSTER. I’m beginning to suspect a correlation between a relocation and an inversion, almost as if to make clear the repurposing of the stone from time marker back to masonry.
St Mary . Bradford Abbas . Scratch dials 1 & 2
St Mary . Bradford Abbas . Scratch dial 3
A significant number of churches have multiple dials. Winterbourne Stoke (Wilts) has between 8 and 12, depending on individual interpretation. Some, including me, are keen to view any round hole as a potential style hole; and any random straight incision as a radial. Multi-dial churches are worth a close inspection. Rimpton has 4 recorded dials: I have visited twice recently and there are undoubtedly 2 more.
St Laurence, Holwell has 3 dials in a group on a buttress. Two are quite large and sophisticated. In the top half of the faintly encircled lower dial, there’s a small more rustic dial as shown in the diagram above (you can just see the style hole on the photo)
St Laurence . Holwell . Dorset
All six churches featured here are in the Three Valleys Benefice
Photos: Keith Salvesen sundails@gaudiumsubsole.org
Take one majestically ruined Viollet-le-Duc castle in central France, and simply add a c21 slate sundial of rather unsatisfactory design, fix it to a medieval wall with badly-chosen B&Q screws, and you get this… Viollet violated.
Actually, I’m being a bit harsh on it. Looking closely, including at the gnomon, the dial seems to be home-made by someone who knew what he was doing. The carefully sketched light markings indicate that he (or she) has taken a lot of trouble over it. Had I made it myself, I’d be proud of it. But I might have located somewhere less blatantly out-of-place (and maybe with different screws…).
The village of Piddletrenthide in Dorset lies by the upper reaches of the River Piddle, Dorset’s most amusingly named river. Like its close neighbour, the larger River Frome, the Piddle flows roughly ESE to Poole Harbour. Piddletrenthide is an interesting village for many reasons, but I am heading straight to the northern end, to All Saint’s Church which dates from C12. And I’m zeroing in on the porch.
As you can see, centrally above the porch entrance is, firstly, a badly degraded tablet (only the letter A is clearly visible). Above it is a fine, well-defined sundial. Probably, the experts would not call it a mass dial at all, since it is not actually cut into the church’s stonework, but is on its own block stapled (now anyway) to the church wall. As British History Online (a great resource) puts it, Sundial: Above entry to S. porch, rectangular stone slab with enriched border, Roman numerals, wrought-iron gnomon and date 1602.
There’s no doubt about the date. ‘1602’ is completely clear, though the preceding inscription is harder to decipher. By sight, I could only clearly make out the words TO BE, as mentioned by the British Sundial Society (see below). Photographs taken on a sunny day reveal more, and I have done a bit of work on one of them – making it black and white for a start. I believe the legible part of the inscription reads OCTOBER ? ? 23 (possibly 1523). A ladder might make the task of completing the inscription easier!
The design is rather more sophisticated than earlier dials. For a start, marking the canonical hours is by now a thing of the past; this dial is on the 24-hour clock that arrived with the early timepieces. The dial marks from 6am to 6 pm, but it is old enough for IV to be rendered as IIII. Also, this is a ‘scientific dial’. With very early dials, the distance between the markers was equal, an inherently unreliable system throughout the year. Gradually, dials acquired graduated markers that narrowed towards the lowest mark, and widened after it. This provided greater accuracy. Among the earliest – if not THE earliest example – is atLITLINGTON CHURCHin East Sussex.
The above photograph shows the stubby gnomon. I assume it is not the original one. I must have taken this photograph around midday. The face is decorated with a lattice design on both sides, the right side being rather more worn. In addition there are two attractive roundels with a design I can’t make out. A Maltese cross, perhaps? The British Sundial Society describes the dial thus: Shows 6am to 6pm in half hours. Two circular motifs cut into either side of gnomon, decoration cut into dial sides. IIII for 4pm. Triangular sheet gnomon with lead fixings – possibly not original. A possible inscription at bottom “.. ..To Be.. ..”.
All Saints is a fascinating Church, both outside and inside. There are many inventive gargoyles and other carvings; and the interior is very rewarding. Another post about this church will follow in due course. Meanwhile, as a side note, the Piddletrenthide Parish Records detail a most interesting fact that will have me revisiting the church for sure: The first known use of Arabic numerals can be seen in an inscription on the west door of the church tower ‘Est pydeltrenth villa in dorsedie comitatu Nascitur in illa quam rexit Vicariatu 1487’. The use of Roman numerals continued in Europe for at least another century so it is quite something to find Arabic numerals inscribed over a doorway in a small village in Dorset.
The secluded Monastery of Lluc is situated near Escorca in the Tramuntana mountains of Mallorca. It dates from the c13, and is famous for its Black Madonna, the discovery of which is said to have led to the monastery’s foundation . It is a place of pilgrimage. The location is remote and peaceful, though inevitably the monastery has become an essential stop on the tourist and coach party trail. We returned there recently, not having visited Mallorca for more than 20 years. The buildings were much as we remembered, but the parking and visitor arrangements were more regimented and complex. Before, one just drove down the narrow road from the main mountain road and parked in the forecourt area close to the buildings. Now, everything is (unsurprisingly) geared to a daily mass influx of people and their needs for sustenance and souvenirs. We were pleased to see that it is still possible to stay at Lluc in one of small rooms under a long covered walk where the monks once slept. You can reach the Monastery’s website – and even book a room – HERE.
A short walk from the monastery, one can climb a path to a calvary and some great views. Along the way is a an amazing multiple vertical sundial. It was designed by Rafael Soler, and carved in 1991 and displays with some style the evolution of sundials. There are two historical dials, one central solar dial, and two modern dials.
CANONICAL HOURS – LATINATE
This dial simply records the 3-hourly canonical divisions of the liturgical day (as with the early medieval mass / scratch dials), starting with midnight (top) and working counterclockwise round a central gnomon.
CANONICAL HOURS – BABYLONIAN / MALLORQUIN
A more complex dial, starting at noon (XXIV) through to 21.00, and including the months and the signs of the Zodiac.

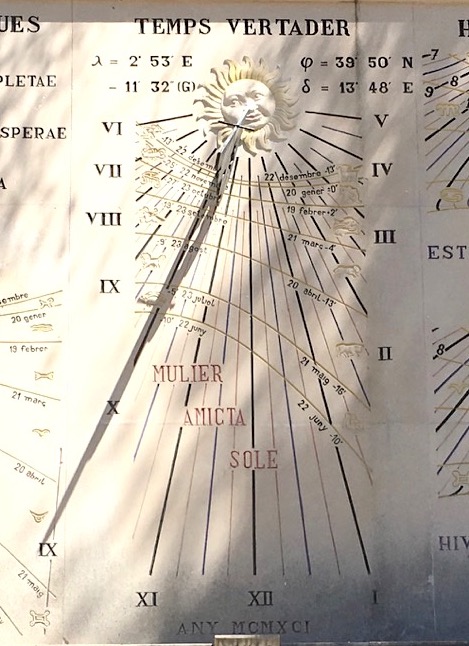

TEMPS VERTADER – TRUE SOLAR TIME
The centre sundial shows true solar time. The polar gnomon (triangular) shows the hours, the pointer shows the date with the declination lines. The inscription MULIER AMICTER SOLE (Woman Clothed by the Sun) references an account in the Book of Revelations.

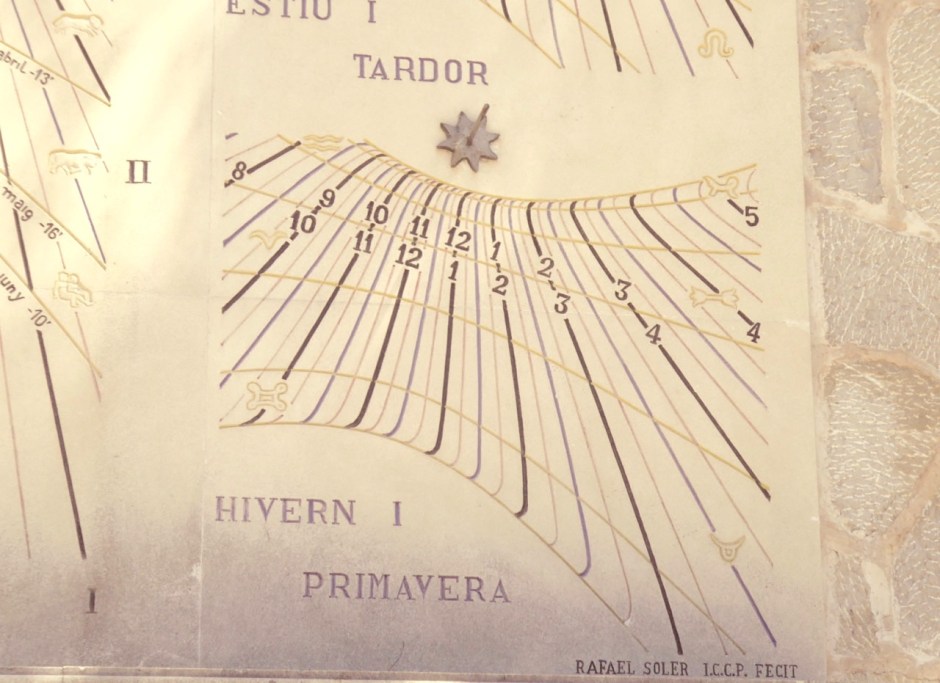

MEAN TIME DIAL (SUMMER /AUTUMN)
The two right-hand sundials are complementary and each covers two seasons. I think this must mean that for a particular month, one will be reliable as to time and the ‘off-season’ one will not.
MEAN TIME DIAL (SUMMER /AUTUMN)
The creation of these dials was obviously a labour of love and skill combined. There’s doubtless plenty more to be said about these sundials and the splendid ensemble but I have decided not to get too technical – indeed, I don’t understand enough to do so anyway. Apologies for the rather washed out appearance of the images. This was operator error – I had the camera on the wrong settings and didn’t realise until later…
Credits: Props to arby101ca and lumbricus, members of a geocaching & waymarking website called Groundspeak. They hiked to Lluc (respect!) and wrote informatively about these dials. I found relatively little elsewhere.
The remarkable, sophisticated and possibly unique scratch dial on the face of the church porch that I recently featuredHERE is not the only dial on this attractive Sussex Church. Almost unremarked are what are passingly mentioned in the only two references I have found online as ‘two further sundials on a north buttress’ (a nod here to the Eastbourne Church Recording Group). These dials do not even appear in the British Sundial Society‘s list of mass / scratch dials (though they do feature the main dial on the porch).
DIAL ONE – NORTHEAST FACE
Having been told about the three – three! – dials, I was fairly confident when I set out to search for them. The first one – on the porch – was easy, not least because it was on the most obvious, south-facing, location possible. Then the trouble started. Without the Church Warden’s aid, I’d never ever have found the other 2. Who would guess that the dials would be (a) on the north side, (b) a couple of feet off the ground and (c) set at a 90º angle to each other on the same stone block in a buttress.
Northeast Face (1)
In the absence of any other information, dating these dials is very hard. The church dates from c1150. These dials, almost identical in construction as far as one can tell, are clearly simpler and far cruder than the main dial on the porch that is dated to the c15 and is transitional in scratch dial design between showing canonical hours and the ‘modern’ 24 hour clock. Yet both dials are full circles, and have 24 ‘dots’ surrounding the central hole for the pointer – notwithstanding that only the ‘daytime’ area on each dial is functional in practice. As far as I can make out, this is not an unusual arrangement.
Northeast Face (2)
DIAL TWO – NORTHWEST FACE
It’s hard to find any significant difference between this dial and its adjacent counterpart, other than the direction faced. I didn’t make any measurements, but this 24 dot dial seems smaller, not least because the available space on this face is less. The assumption must be that both dials were made at around the same time, presumably to catch the early morning and late afternoon sun. I’ve no idea why they were located so low on the building, since there are higher cornerstones on this buttress that would have done as well – and perhaps have been more readable at eye-level.
Sundials are an interest but very far from a speciality for me. If anyone can shed any light on dials of this sort – date, construction / design, location on the building – please comment on this post, or email me at rollingharbour.delphi [at] gmail.com. And if you know of a similar dial, please get in touch.
The majority of churches have no integral sundial. Those that do are usually content with one; some may supplement that with a standing sundial in the churchyard. Very few have three sundials that are integral to the building itself and to its history. The small church of Litlington East Sussex is one such. It also has a large benchmark on the porch, and three superb bells dating from the early c15. The main sundial is easy to spot; the other two are far less visible. I spent sometime looking for them in vain, until the church warden took pity on me. But (*spoiler alert*) whoever would expect to find sundials low down on a north wall? They deserve a post in their own right, which will form part 2. They are so far undocumented as far as I can see, except locally.
The church dates from c1150, and was restored in the mid-c19. The porch is where the quest for the main sundial ends – the benchmark, too.
A close inspection shows just how unusual this scratch dial is – quite possibly unique. The only full account of it that I have found appears in an article by W. Oliver published in SCM* Volume 12 1938 Page 529. The link is given below.
There are 3 features that immediately stand out: the deep ‘furrow’ at 12 noon; the confusing style / pointer holes; and in particular the carefully graduated hour markings.
An improvised biro ‘style’ indicates the correct time
A REMARKABLE DIAL
W. Oliver makes several points in his article, which distilled come to this:
This is a scratch dial typical of Saxon times and the middle ages, incised on the building stones
The design (for the period) is “most exceptional, if not unique” among the 1400 recorded church scratch dials
Other dials have equally spaced hour-lines that cannot measure time accurately, and certainly not year-long (though pointer adjustments could be made to compensate)
These were primarily intended to indicate the 5 Canonical hours for prayer, not time
Extra lines were sometimes added, as time measurement became more sophisticated
At Litlington, exceptionally, the hour-line spacing is ‘scientific’ to enable accuracy
The lines are carefully graduated down to and up from 12 noon
This scientific approach is very much as seen on modern vertical sundials
The usual hole for a style / pointer is supplemented by the deeper groove at noon
This suggests there was at some stage a slanting gnomon, as found on modern wall dials
This could have been set to the latitude of Litlington to ensure year-round accuracy
The Litlington scratch dial may in fact be the only one able to tell the time properly
Do the 3 holes support the theory of an added gnomon fixed below the original style hole?
DATING THE DIAL
W. Oliver does not give a date for the dial, other than ‘Middle Ages’ (it’s clearly not as old as Saxon). In a website called https://www.bestofengland.com the entry for this church states “Outside there is still a 13th century sundial on the porch”. This dating seems to have caught on and appears in e.g. Tripadvisor descriptions.
The local website http://www.litlington.info/st-michael-the-archangel-church-litlington says “Outside, on the porch, is a 15th century scientific sundial…” Given the sophistication of the Litlington dial, the first date seems clearly wrong and the second must be the preferred date. It also fits in with date of the installation of the earliest bell – perhaps a time of general improvements to the church. Even so, in the light of W. Oliver’s analysis, the dial shows an extraordinary understanding of the principles of recording time accurately that is apparently absent in the 1399 other instances of scratch dials in the country. The British Sundial Society has a short entry (see below) for this dial (and none for the other two at the ‘back’ of this church, mentioned earlier), including a reference to a polar gnomon. No mention of a possible date, but I take ‘transitional’ to mean between the era of marking the Canonical Hours and the gradual move to a 12 / 24 hour clock as the standard for time-telling.
The brief entry states “The dial can be seen to the right of the porch. All hour lines 6am – 6pm, but no numbers or any trace that there ever were any. Lines correctly delineated for a polar gnomon. No trace of old lines, so possibly not a re-cut mass dial. 310 diam. semicircle. Transitional dial? Ref. C Daniel, Sundials, Shire Album 176,1986, p5 Location 50°47’50″N, 0°9’34″E; National Grid: TQ 523 020″
The illustration to W. Oliver’s article
Any comments about this remarkable dial would be welcome.
Research as specified / linked. * = Sussex County Magazine. The Litlington website entry is as recorded by the Eastbourne Church Recording Group between 2007/2009. All photos Keith Salvesen / Rolling Harbour except as indicated

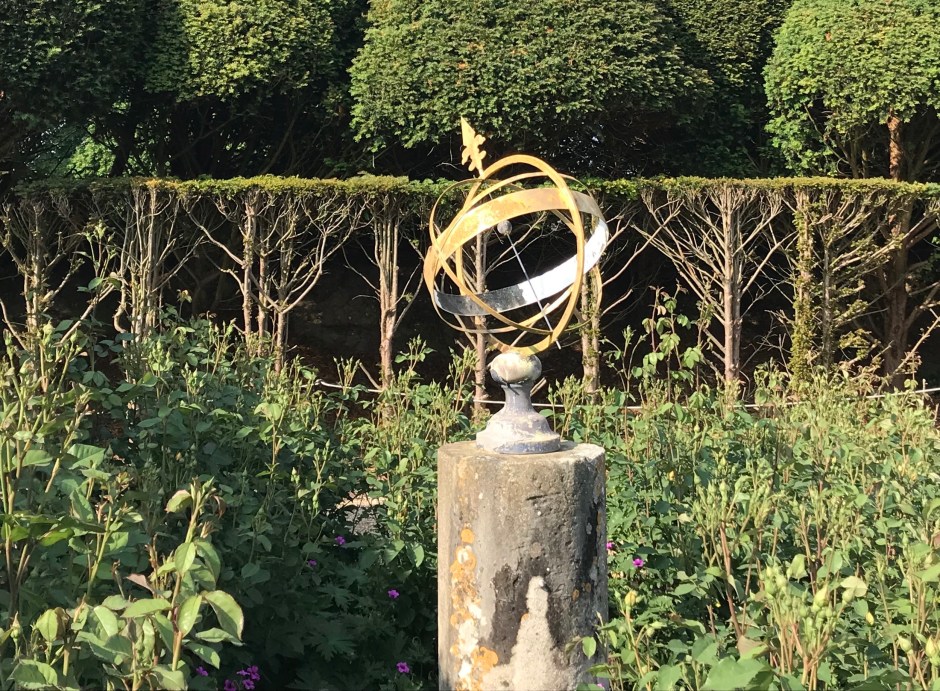

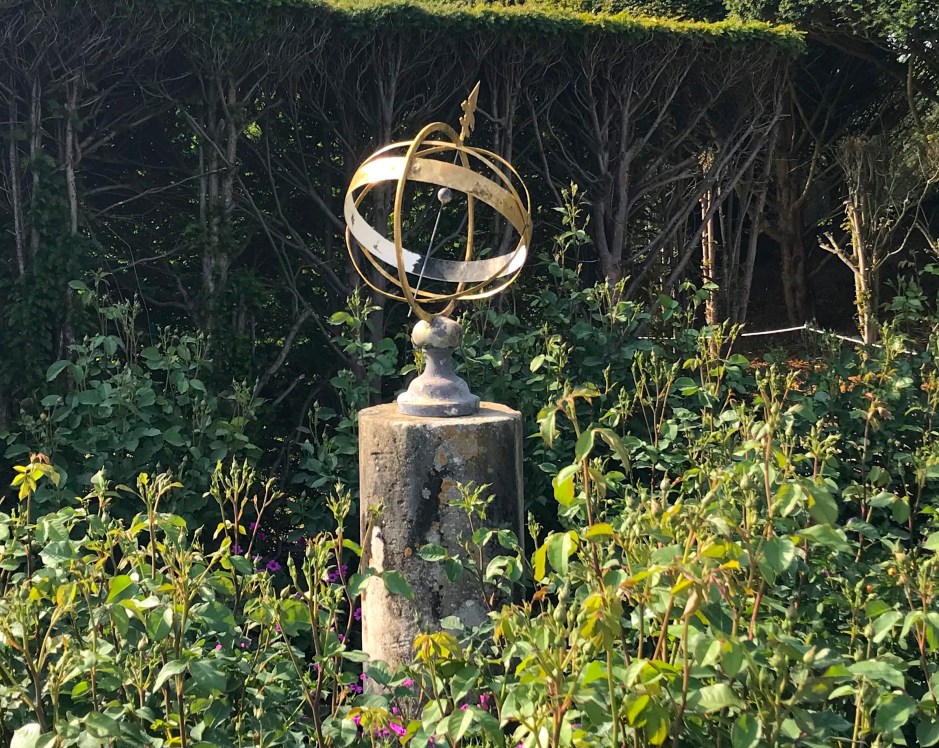

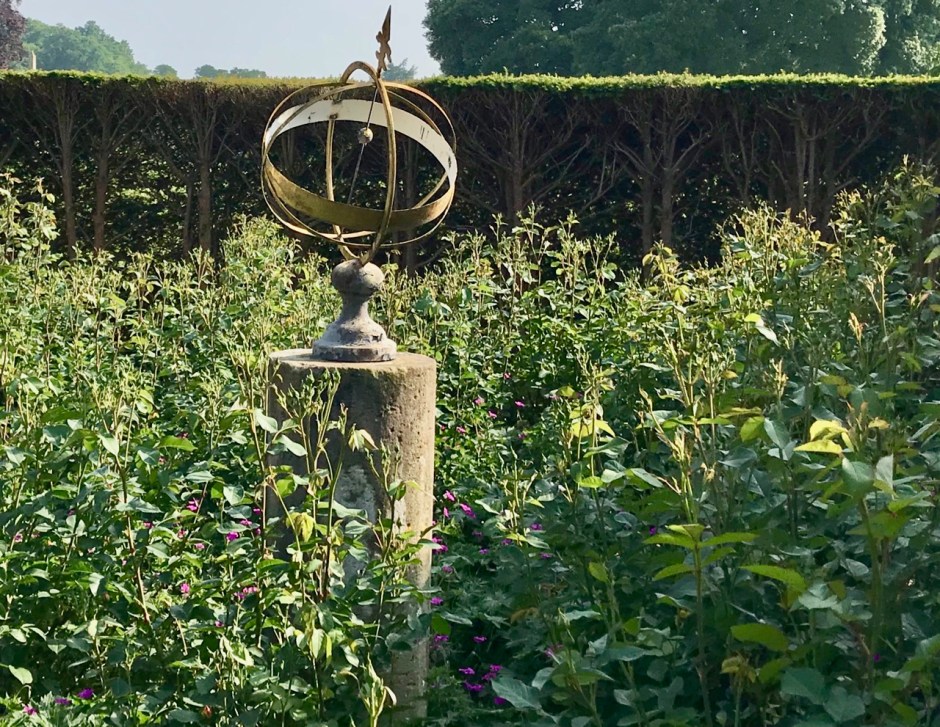

This enjoyable armillary sphere at Kingston Lacy stands proudly on a tall stone baluster in the middle of a rose garden. I wanted to get close to it to look for markings, few of which were visible at a distance. However the lush spring growth deterred closer investigation, and I preferred to leave it inspected. It is not included in Historic England’s detailed descriptions of the house and garden. A photograph found online suggests that the sundial was at one time located elsewhere in the garden, near a wall. I need to try a bit harder to find a date for it.
Toller Porcorum is an archetypal Dorset village, right down to a latinate name redolent of medieval swine-herding (cf Ryme Intrinseca, Kington Magna etc). The fine Church of St Peter and St Andrew lies at the heart of the village, and is also very ‘Dorset’.
While I was fishing on the nearby River Frome a couple of weeks ago, Mrs RH visited some churches in the area, including this one. Inside, she noticed an unusual modern ‘glass sundial’ set in a stained glass window, a marker of the hours and the millennium.
Knowing that sundials are one of the features on this blog, she took a few photographs with her phone. They have come out very well.
In the close-up above, you can just make out the shadow of the gnomon at approx 12.40 (midday being at the bottom). On the outside the gnomon, in the right-hand window (below), is elegantly simple and unobtrusive. The close-up shows it more clearly. But of course the effect is meant to be seen from the inside, if only to time the length of the sermon.
Lordy, but I am negligent of this site. Thanks you, kind people who still come to look at stuff here even though (I am ashamed to note) my last post was in November 2017. I’m going to try to get back on track with this side-project… there’s quite a backlog of material!
Paul is a small village west of Penzance, Cornwall. It sits high on the hill above its more famous neighbour, Mousehole. Paul’s historic parish church, St Pol de Léon, has origins reputedly dating from late fifth century. The medieval building was (to my ignorant surprise) badly damaged in a raid by the Spanish in 1595, several years after the Armada. Mousehole also suffered great damage in the same raid. Until visiting Paul this summer, I had no idea that the Spanish had ever managed to breach England’s defences. So I checked online and was quickly led to the BATTLE OF CORNWALL, of which I had never heard. So now I know… I hope Hispano-Kernowek relations have improved.
The Church merits its own post in due course. For the moment, the maze-collector in me found a different interest in a nearby extension to the churchyard. An engraved stone set into a wall, and a small diagram nearby, led me to a path and a large area of hillside with extensive views out to sea, and east towards St Michael’s Mount.
Near the more recent gravestones was a sundial; and closer inspection revealed that it was at the centre of a small, overgrown maze outlined on the grass in granite. How I longed, interferingly, to have a strimmer handy. But apart from tracing some of the pattern with my foot, I restrained my quite unreasonable urge to disclose the maze…
